2-HDT, 2-Ton Manual Trolley
Stock Number:
JT9-262020

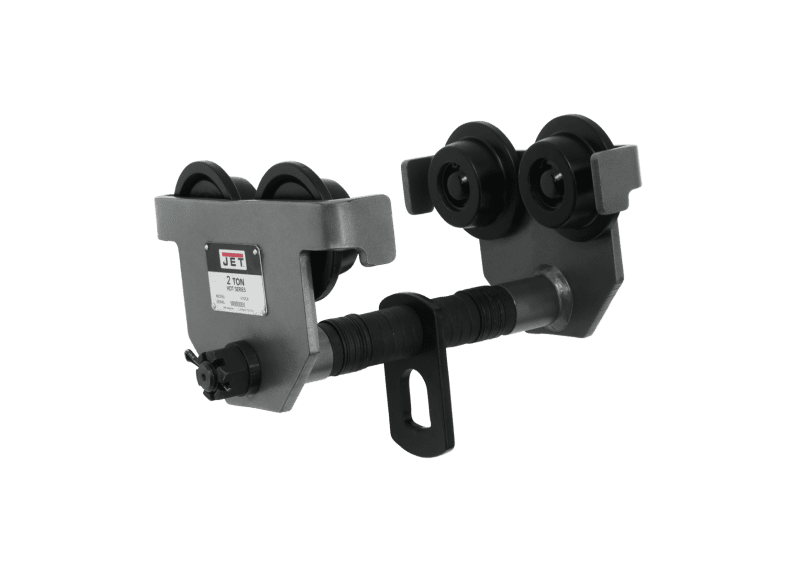

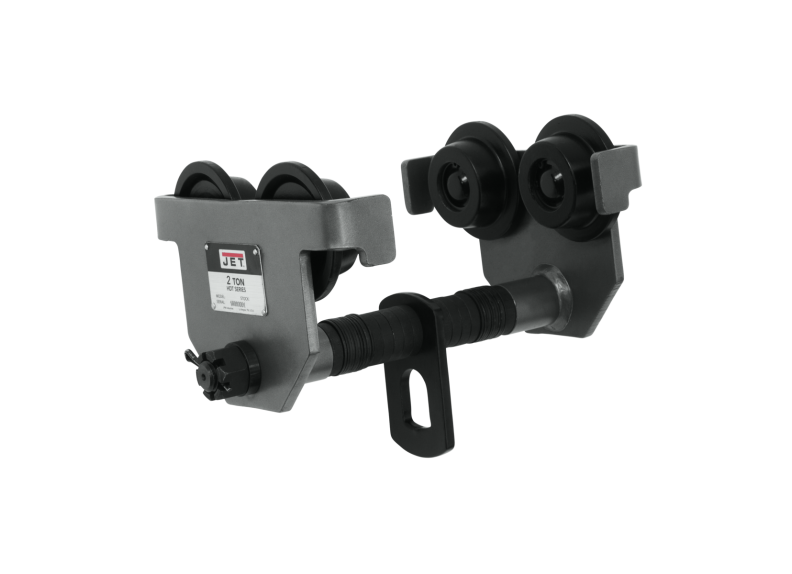

JET 2-HDT, 2-Ton Manual Trolley (262020)
Manual
JET® HDT Series Manual Trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
Built-in bumper guards on the side plates increase safety and extend trolley life
Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
Welded all-steel frame and powder coat finish provide maximum durability and protection
| Stock Number | JT9-262020 |
|---|---|
| Capacity (Lbs.) | 4400 |
| Hook Mount Headroom (In.) | 5-3/8 |
| Load Capacity (Tons) | 2 |
| Maximum Beam Flange Width (In.) | 8 |
| Minimum Beam Curve Radius (In.) | 43 |
| Minimum Beam Flange Width (In.) | 3-1/4 - 8 |
| Model Number | 2-HDT |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) | 31 |
| Wheel Diameter (In.) | 3 |
| Max. Hook Size (W/in.) | 1-1/2 |
| Minimum Beam Height (In.) | 6 |
| Overall Dimensions (L x W x H / in.) | 10-3/16 x 13 x 6-5/16 |
