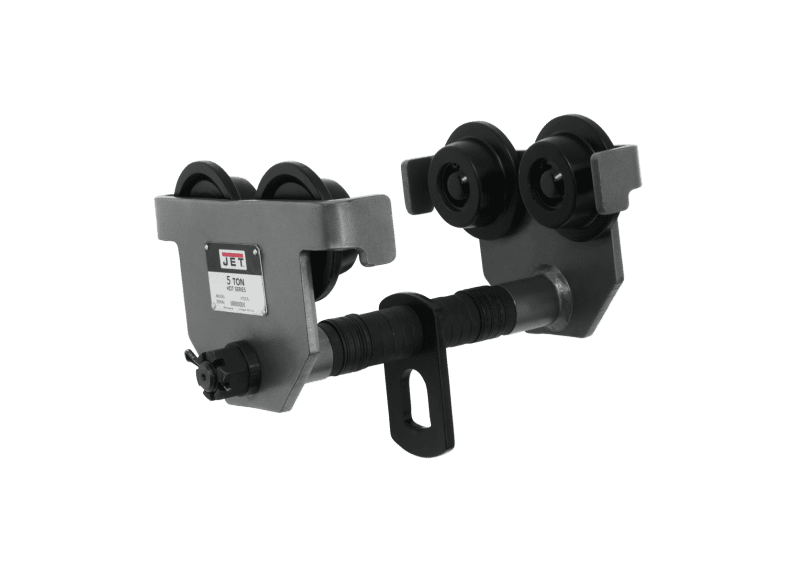

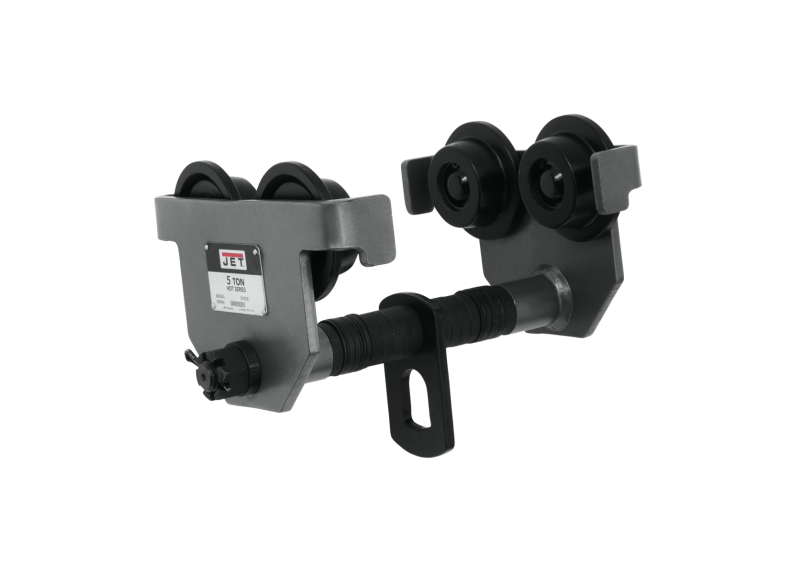

5-HDT, 5-Ton Manual Trolley
Stock Number:
JT9-262050
5-HDT, 5-Ton Manual Trolley
Manual
JET® HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards
Built-in bumper guards on the side plates increase safety and extend trolley life
Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
Welded all-steel frame and powder coat finish provide maximum durability and protection
| Stock Number | JT9-262050 |
|---|---|
| Capacity (Lbs.) | 11000 |
| Hook Mount Headroom (In.) | 7-11/16 |
| Load Capacity (Tons) | 5 |
| Maximum Beam Flange Width (In.) | 8 |
| Minimum Beam Curve Radius (In.) | 55 |
| Minimum Beam Flange Width (In.) | 4-5/8 - 8 |
| Model Number | 5-HDT |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) | 87 |
| Wheel Diameter (In.) | 4-3/4 |
| Max. Hook Size (W/in.) | 2-1/8 |
| Minimum Beam Height (In.) | 10 |
| Overall Dimensions (L x W x H / in.) | 14-13/16 x 14-13/16 x 8-9/16 |
