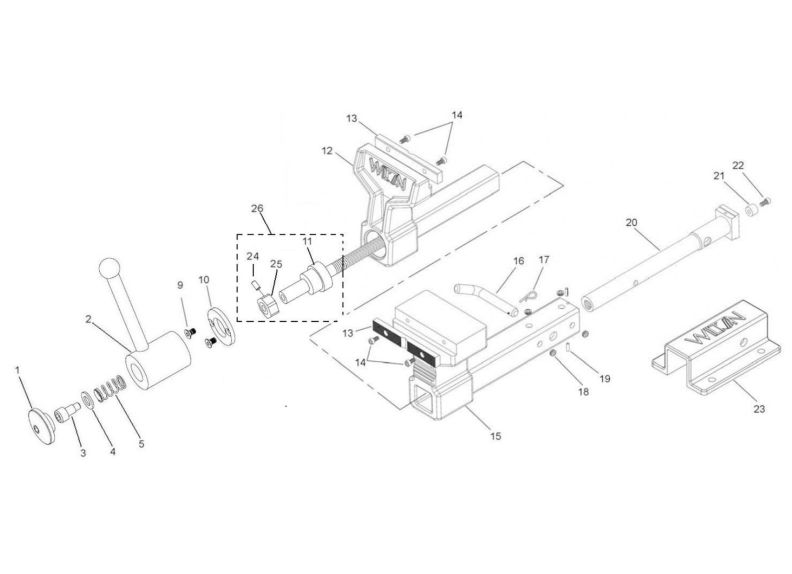

| Index Number | Part Number | Description | Size | Qty |
| ATV-HA | Handle Assembly (index #1-5) | 1 | ||
| 1 | ATV-01 | Cap | 1 | |
| 2 | ATV-02 | Handle | 1 | |
| 3 | ATV-03 | Socket Head Cap Screw | Ø10x23 mm | 1 |
| 4 | ATV-04 | Washer | Ø11 x Ø20x 2 mm | 1 |
| 5 | ATV-05 | Spring | Ø16x22 mm | 1 |
| 9 | ATV-09 | Set Screw | M5x12 | 2 |
| 10 | ATV-10 | Spindle Collar | 1 | |
| 11 | Lead Screw (Re: ATV-11) | 1 | ||
| 12 | Floating Jaw Body | 1 | ||
| 13 | ATV-13 | Jaw Insert (set of 2) | 6”L x 1/2"W x 7/8”H | 1 set |
| 14 | TS-1503031 | Socket Head Cap Screw | M6x12 | 4 |
| 15 | Stationary Jaw Body | 1 | ||
| 16 | ATV-16 | Hitch Pin | Ø16 mm | 1 |
| 17 | ATV-17 | Cotter Pin | Ø4 mm | 1 |
| 18 | ATV-23 | Adjustment Screw | M16x1.5x8.5 | 4 |
| 19 | ATV-18 | Roll Pin | 4x12 mm | 2 |
| 20 | ATV-19 | Spindle Nut | 1 | |
| 21 | ATV-20 | Spacer | 1 | |
| 22 | JHM610-22 | Socket Head Cap Screw | M6x14 | 1 |
| 23 | 10300 | Bench Mount Receiver | 1 | |
| 24 | Handle Pin (Re: ATV-11) | 1 | ||
| 25 | Hexagonal Collar (Re: ATV-11) | 1 | ||
| 26 | ATV-11 | Lead Screw Assembly (index #11,24,25) | 1 |
| Stock Number | 10010-1 |
|---|
