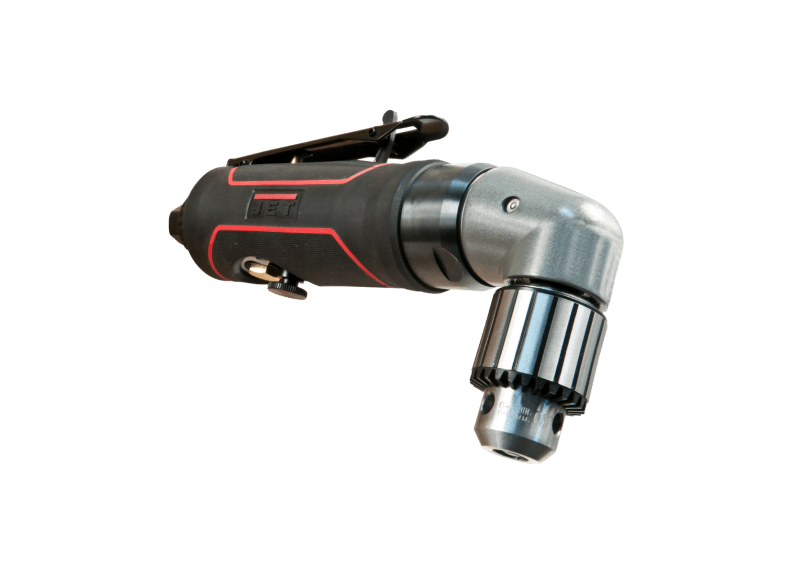

JAT-630, 3/8" Reversible Angle Drill
Stock Number:
JT9-505630
$237.99
JET JAT-630, 3/8-Inch Pneumatic Angle Drill (505630)
Manual
The JAT-620 is 1/2" composite housing angled drill build with 1,200 rpm of speed for the Transportation and MRO markets with reversible design and industrial keyed chuck
Bottom-mounted, forward/reverse switch locks in place
Ergonomically Designed Grip
Head rotates 360° for increased versatility
Industrial Jacobs’s keyed chuck efficiently transfers torque when needed
Low profile angled head for work in tight spots
Rugged, ball-bearing design for durability
Variable-speed trigger for precise speed control
| Stock Number | JT9-505630 |
|---|---|
| Air Consumption (CFM) | 4.0000 |
| Air Hose (ID/In.) | 3/8 |
| Air Inlet (NPT) | 1/4 |
| Air Pressure (PSI) | 90 |
| Chuck Size (In.) | 3/8 |
| Free Speed (RPM) | 1200.0000 |
| Horse Power (HP) | 0.5000 |
| Min. Air Hose (ID) | 3/8 |
| Model Number | JAT-630 |
| Overall Length (In.) | 8 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Power (db) (A) | 97.0000 |
| Sound Pressure (db) (A) | 90.0000 |
| Spindle Thread (In./TPI) | 3/8"-24 UNF |
| Vibration Value (m/s²) | 0.5000 |
| Weight (Lbs.) | 2.78 |
