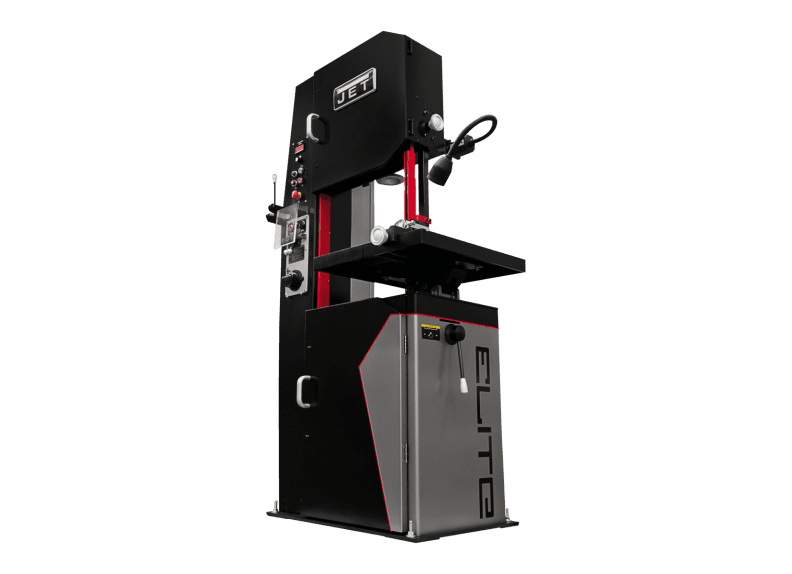

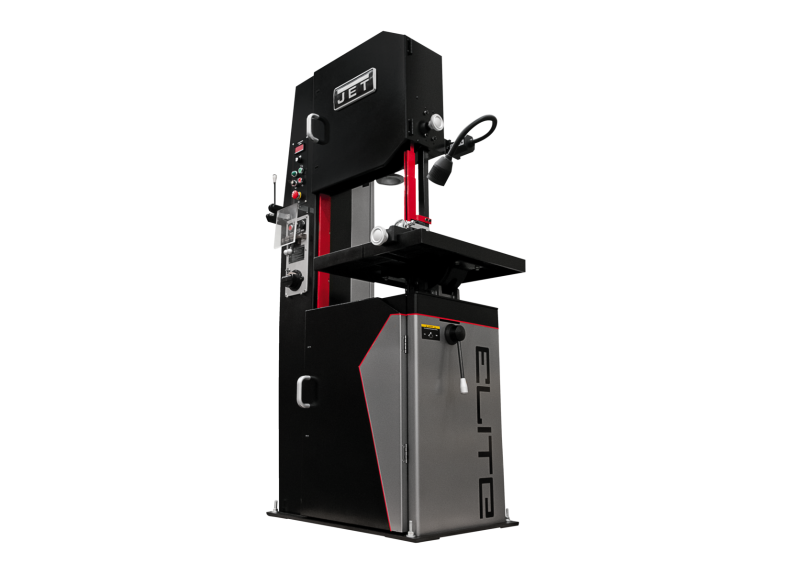

EVBS-20, 20" Vertical Bandsaw
Stock Number:
JT9-891100
EVBS-20, 20" Vertical Bandsaw
Manual
Elite Vertical Bandsaws are the perfect blend of power and balance. Featuring variable speed drivetrains with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations, and CSA / CUS Certification make Elite vertical bandsaws the choice for precision sawing of ferrous and non-ferrous materials.
4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view
Easily adjustable blade guard for increased safety
Handwheel with blade tensioning gauge accurately measures blade pressure to prevent breakage
Heavy-duty enclosed steel frame provides strength and rigidity
Precisely ground, articulating table with 10° left and 45° right movement for contour cutting at any angle
Precision balanced cast-iron blade wheels transmit speed and torque to the blade
Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
| Stock Number | JT9-891100 |
|---|---|
| Blade Length (In.) | 151-1/2 |
| Blade Speeds (SFPM) | Variable 50-5000 |
| Blade Width (Min.-Max.) (In.) | 1/8 - 1 |
| Gross Weight (Lbs) | 1356 |
| Height Capacity (Max.) (In.) | 13 |
| Model Number | EVBS-20 |
| Motor (HP) | 2 HP, 230V, 3Ph |
| Net Weight (Lbs.) | 1102 |
| Overall Dimensions (L x W x H) (In.) | 40 x 29 x 77-1/2 |
| Overall Height (In.) | 77-1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height (In.) | 39-3/8 |
| Table Size (L x W) (In.) | 24 x 22 |
| Throat Capacity (In.) | 20 |
| Weight (Lbs.) | 1102 |
| Welding voltage (V) | 4.2 KVA Bi-Metal Welder |
| Electrics | 2HP, 230/460V, 3 Phase |
| Prewired Voltage (V.) | 230 |
