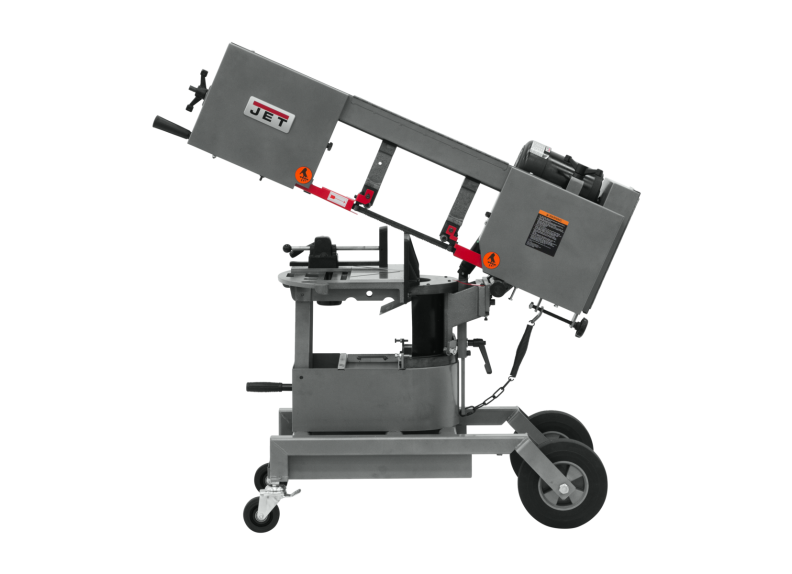

HVBS-10 DMW 10” Horizontal/Vertical Dual Mitering Portable Band Saw , 1HP, 115V, 1 Ph
Stock Number:
JT9-424463
HVBS-10 DMW 10” Horizontal/Vertical Dual Mitering Portable Band Saw , 1HP, 115V, 1 Ph
Manual
The JET Dual-Mitering Band Saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position, and wheels for moving around the shop floor.
Adjustable vise
Automatic shut off switch stops the sawing process
Blade is fully guarded for Operator safety
Built-in, self-propelled blade brush prevents chip build up in blade guides
Head is pressure controlled by a hydraulic cylinder
Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
Large 16" x 10" Vertical cutting table
Power switch with safety key prevents accidental start up
Protractor for fast and accurate angle cutting
Removable chip tray
| Stock Number | JT9-424463 |
|---|---|
| Head Movement (Deg.) | +/- 45 |
| Maximum Vise Opening (In.) | 10 |
| Model Number | HVBS-10-DMW |
| Motor (HP) | 1HP, 115V, Single Phase |
| Overall Dimensions (L x W x H) (In.) | 72 x 34.5 x 46 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 45 Degrees (In.) | 8 x 5-1/2 |
| Rectangle at 90 Degrees (In.) | 8 x 9 |
| Round at 45 Degrees (In.) | 6-1/2 |
| Round at 90 Degrees (In.) | 10 |
| Table Height (In.) | 30-13/32 |
| Weight (Lbs.) | 558 |
