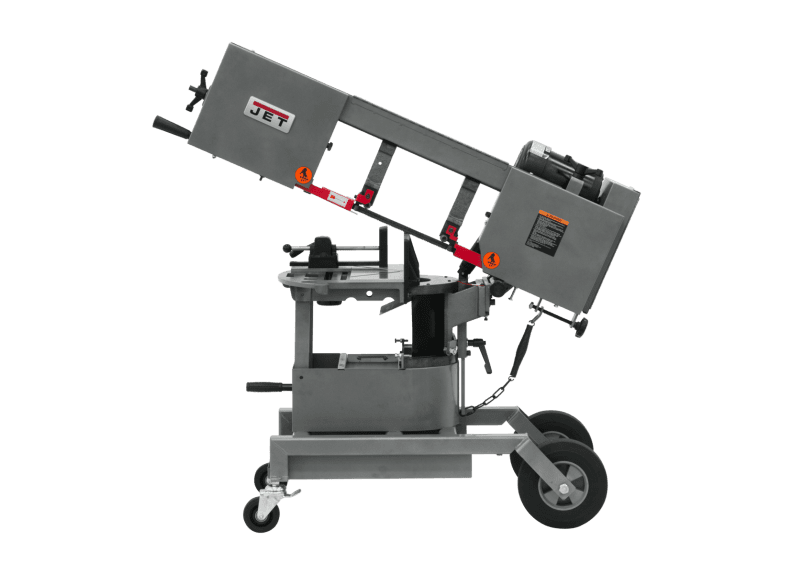

HVBS-8-DMW 8” Horizontal/Vertical Dual Mitering Portable Band Saw , 1HP, 115V, 1 Ph
Stock Number:
JT9-424460
HVBS-8-DMW 8” Horizontal/Vertical Dual Mitering Portable Band Saw , 1HP, 115V, 1 Ph
Manual
JET Dual-Mitering Band Saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position, and wheels for moving around the shop floor.
Adjustable vise
Automatic shut off switch stops the sawing process
Blade is fully guarded for Operator safety
Built-in, self-propelled blade brush prevents chip build up in blade guides
Head is pressure controlled by a hydraulic cylinder
Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
Large 16" x 10" Vertical cutting table
Power switch with safety key prevents accidental start up
Protractor for fast and accurate angle cutting
Removable chip tray
| Stock Number | JT9-424460 |
|---|---|
| Blade Wheel Diameter (In.) | 8-13/16 |
| Head Movement (Deg.) | +/- 45 |
| Maximum Vise Opening (In.) | 8-1/4 |
| Model Number | HVBS-8-DMW |
| Motor (HP) | 3/4 HP, 115V, 1-Ph |
| Overall Dimensions (L x W x H) (In.) | 24 x 54.7 x 43.8 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 45 Degrees (In.) | 7 x 5-1/2 |
| Rectangle at 90 Degrees (In.) | 7 x 8 |
| Round at 45 Degrees (In.) | 6 |
| Round at 90 Degrees (In.) | 8 |
| Table Height (In.) | 27-5/16 |
| Weight (Lbs.) | 500 |
