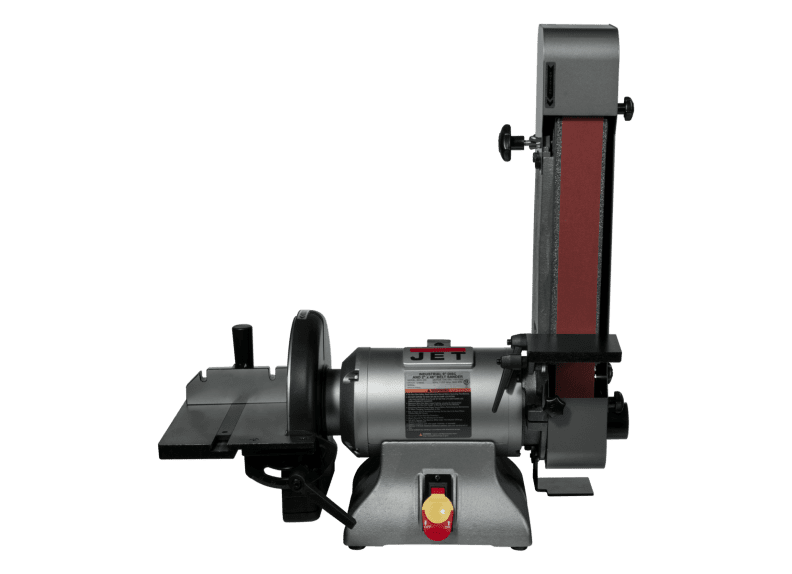

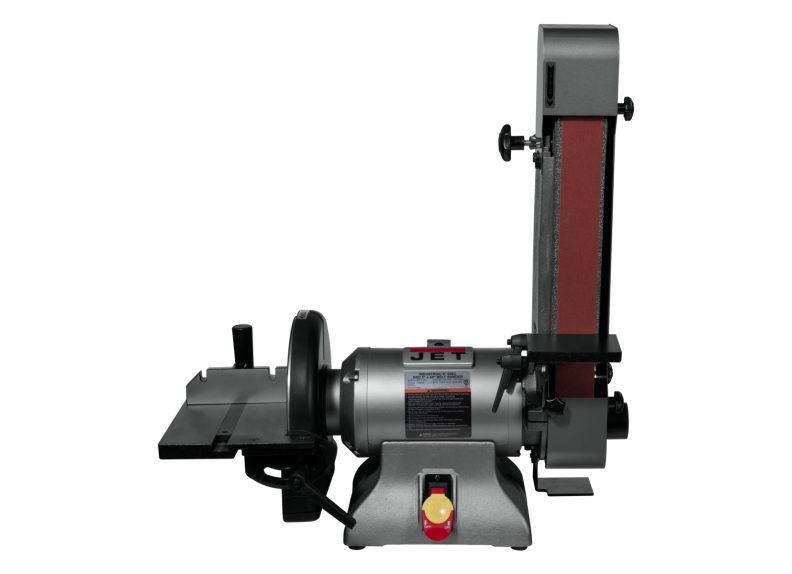

IBDG-248 Combination Industrial 2" x 48" Belt and 9" Disc Grinder
Stock Number:
JT9-578842
Manual
The IBDG-248 Combination 2" x 48" Belt and 9" Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. CSA/CUS Certified.
9" aluminum disc reduces heat buildup and prolongs abrasive life
Cast iron work rests with tool-less adjustments
Contact wheel grinding with toolless access
Easy-to-use belt tracking.
Full guarding of all non-work contact points
Heavy Cast Iron Bases reduce vibration.
Safety switch with removable key
Solid cast iron platen offers rigid grinding surface
Two dust collection ports minimize debris build up.
| Stock Number | JT9-578842 |
|---|---|
| Model Number | IBDG-248 |
| Belt Size (W x L) (In.) | 2 x 48 |
| Belt Speed (SFPM) | 4712 |
| Disc Diameter (In.) | 9.0000 |
| Disc Speed (RPM) | 3600 |
| Amperage Draw @ 115V 1Ph | 11 |
| Belt Grit | 80.0000 |
| Dust Port Size (In.) | 2 |
| Gross Weight (Lbs) | 97 |
| Motor (HP) | 1 |
| Motor Voltage (V.) | 115 |
| Net Weight (Lbs.) | 74 |
| Overall Dimensions (L x W x H) (In.) (sanding bracket is parallel) | 23-1/2 x 26-3/4 x 12-1/4 |
| Overall Dimensions (L x W x H) (In.) (sanding bracket is vertical) | 23-1/2 x15 x 25-7/8 |
| Prop 65 | Cancer |
| Shaft Diameter (In.) | 11 |
