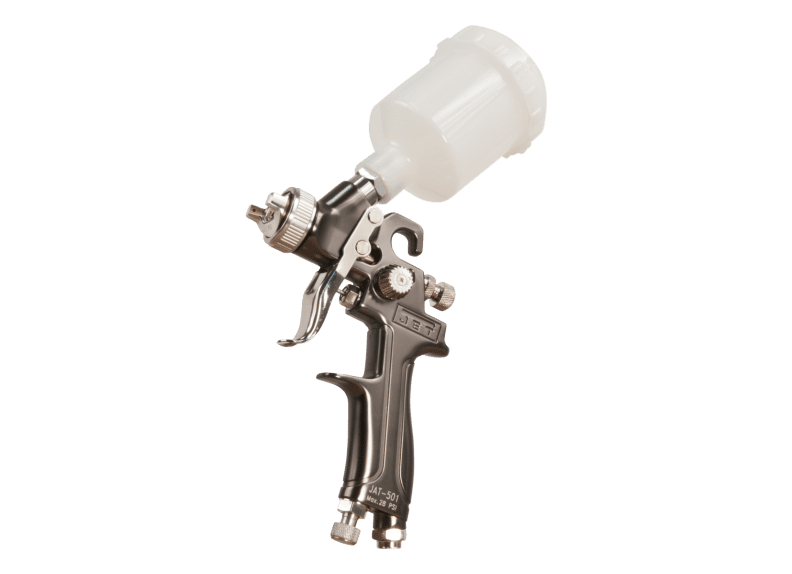

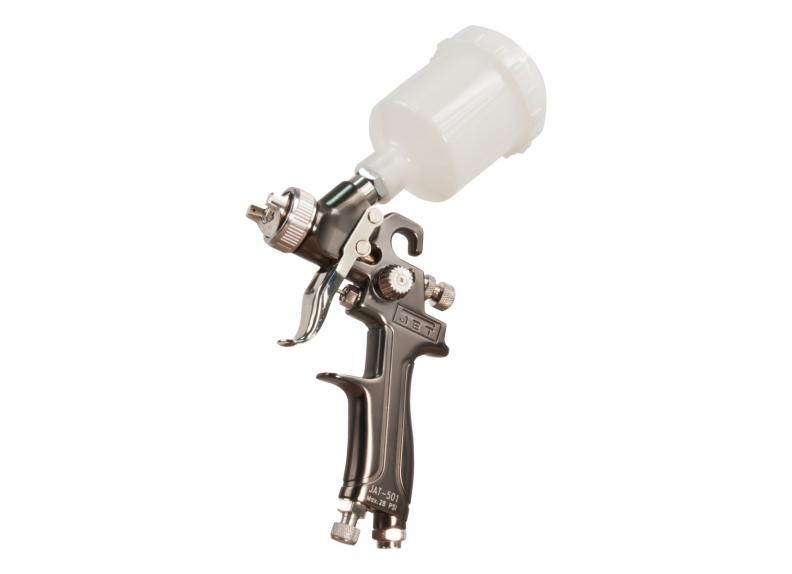

JAT-501, HVLP Mini Spray Gun
Stock Number:
JT9-505501
$183.99
JET JAT-501 Pneumatic R12 Mini Spray Gun (505501)
Manual
The JAT-501 is a high volume low pressure Spray Gun is made to spray evenly without messy over-spray or uneven patterns. This smaller gun enables you to do more touch up work with all the precision of its big brother JAT-500.
Gravity feed 125 cc cup included
High performance is coupled with an anodized aluminum body for easier cleaning
HVLP technology improves material transfer for a more consistent coverage with minimal overspray
Includes 1.0 mm fluid nozzle with additional nozzle kits available
Smaller, compact design reduces weight and operator fatigue
Stainless steel fluid tips and needles
| Stock Number | JT9-505501 |
|---|---|
| Air Consumption (CFM) | 3.8000 |
| Air Inlet (NPT) | 1/4 |
| Air Pressure (PSI) | 28 |
| Cup Size (cc) | 125.0000 |
| Fan Pattern Size (mm) | 140 |
| Fluid Output (cc/min) | 90.0000 |
| Min. Air Hose (ID) | 3/8 |
| Model Number | JAT-501 |
| Nozzle Size (mm) | 1.0 |
| Overall Length (In.) | 6.69 |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) | 0.6 |
