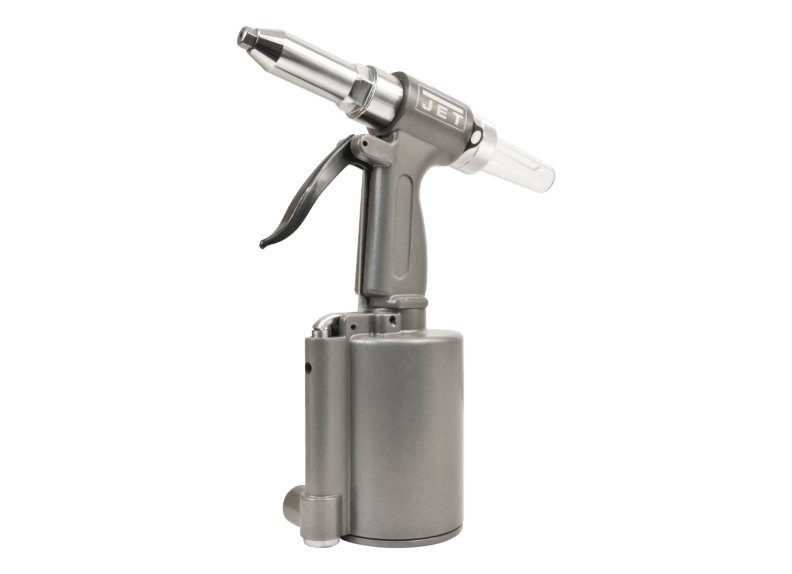

JAT-920 Riveter
Stock Number:
JT9-505921
$209.99
The JAT-921 is a very versatile Riveter that is excellent for mild steel up to 3/16" in depth. Built with industrial usage in mind this tool will hand requirements of high production shops.
Manual
The JAT-921 is a very versatile Riveter that is excellent for mild steel up to 3/16" in depth. Built with industrial usage in mind this tool will hand requirements of high production shops.
3/16" mild steel capacity
Heavy-duty construction for continuous production
Includes 3/16", 5/32", 1/8" and 3/32" nose pieces
Maximum pulling load of 1,940 pounds for increased versatility
Quick-release air valve increases safety
| Stock Number | JT9-505921 |
|---|---|
| Air Consumption (CFM) | 4.0000 |
| Air Inlet (NPT) | 1/4 |
| Air Pressure (PSI) | 78-85 |
| Metal Capacity (Gauge) | 18.0000 |
| Min. Air Hose (ID) | 3/8 |
| Model Number | JAT-920 |
| Overall Length (In.) | 11-1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Rivet Capacity (In.) | 3/16 |
| Sound Power (db) (A) | 88.0000 |
| Sound Pressure (db) (A) | 77.0000 |
| Stroke Length (In.) | 9/16 |
| Traction Power (Lbs.) | 1940 |
| Vibration Value (m/s²) | 1.0100 |
| Weight (Lbs.) | 3.48 |
