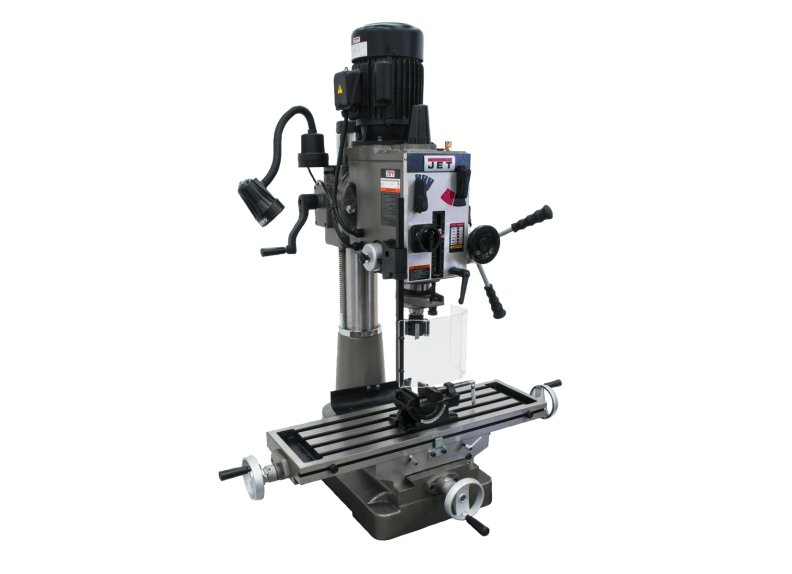

JMD-40GH Geared Head Mill/Drill
Stock Number:
JT9-351040
JMD-40GH Geared Head Mill/Drill
Manual
Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.
Calibrated fine down feed built in
CSA/CUS Certified
Easy to read internal depth gauge
Full power to the cutting tools through 6 speed geared head
Heavy-duty design allows for a variety of precision drilling applications
Mill Drill Stand, p/n 350045, shown in some images, is optional
Milling table allows for movement
R8 spindle allows use of all mill tooling
Rapid spindle speed changes through quick-select gear shift levers
| Stock Number | JT9-351040 |
|---|---|
| Column Diameter (In.) | 4-1/2 |
| Face Mill Capacity (In.) | 4 |
| Max Distance Spindle to Table (In.) | 15-3/4 |
| Model Number | JMD-40GH |
| Motor (HP) | 1-1/2HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 6 |
| Overall Dimensions (L x W x H) (In.) | 28 x 39-1/4 x 42-1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3 |
| Range of Spindle Speeds (RPM) | 65, 130, 220, 480, 925, 1550rpm |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Swing (In.) | 21 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Weight (Lbs.) | 694 |
