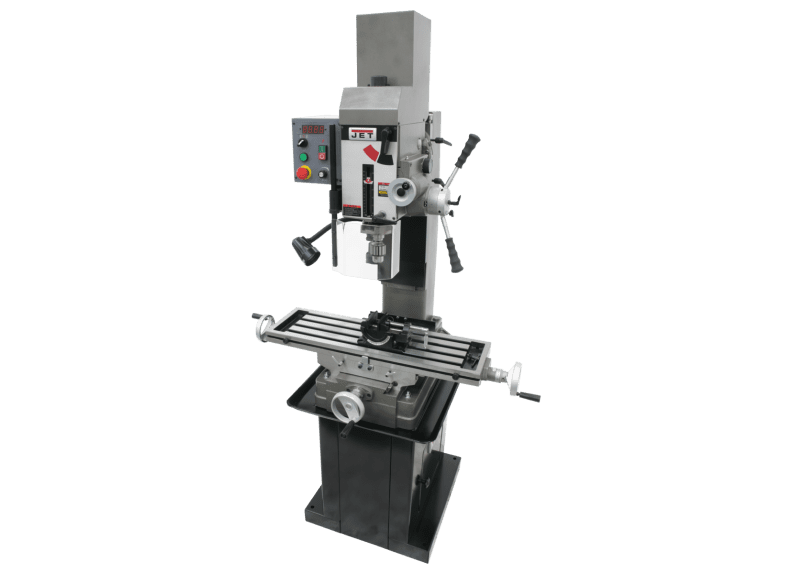

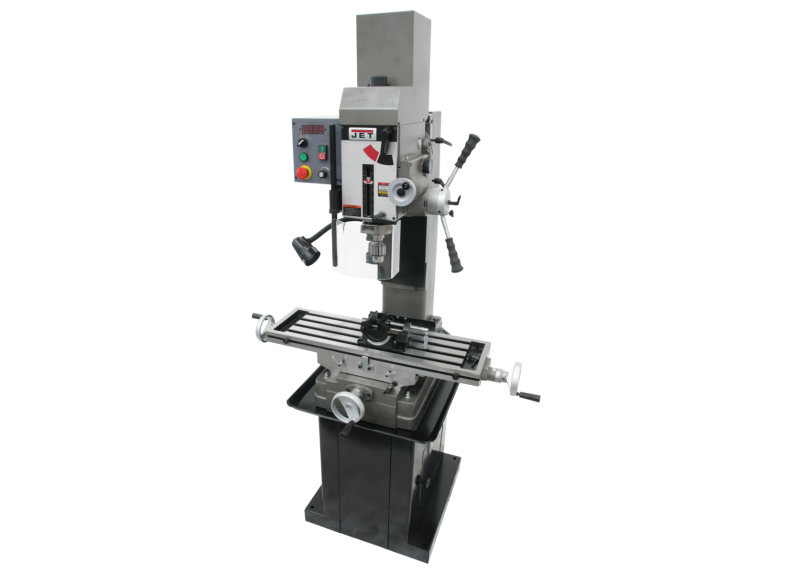

JMD-45VSPFT Variable Speed Geared Head Square Column Mill/Drill with Power Downfeed & Newall DP500 2-Axis DRO
Stock Number:
JT9-351164
JMD-45VSPFT Variable Speed Geared Head Square Column Mill/Drill with Power Downfeed & Newall DP500 2-Axis DRO
Manual
Engineered to maximize production, the heavy-duty JMD-45VSPFT variable speed Square Column Geared Head Mill Drill with power downfeed and tapping capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments. CSA/CUS Certified.
Easy to read internal depth gauge
Full power to the cutting tools through Variable Speed geared head
Heavy-duty design allows for a variety of precision drilling applications
Mill Drill Stand, p/n 350045, shown in some images, is optional
Milling table allows for movement
R8 spindle allows use of all mill tooling
Rapid spindle speed changes through quick-select gear shift levers
Square column with dovetail ways
| Stock Number | JT9-351164 |
|---|---|
| Base Dimensions (In.) | 26-11/16 x 15-15/16 |
| Face Mill Capacity (In.) | 4 |
| Max Distance Spindle to Table (In.) | 18-1/8 |
| Model Number | JMD-45VSPFT |
| Motor (HP) | 1-1/2HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 29 x 36 x 50 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3 |
| Range of Spindle Speeds (RPM) | 50-2500 |
| Spindle Taper (In. x TPI) | R8 |
| Spindle Travel Auto (In.) | 4-1/4 |
| Spindle Travel (In.) | 5 |
| Swing (In.) | 19-11/16 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Table Size (L x W) (In.) | 9-1/2 x 32-1/4 |
| Weight (Lbs.) | 833 |
