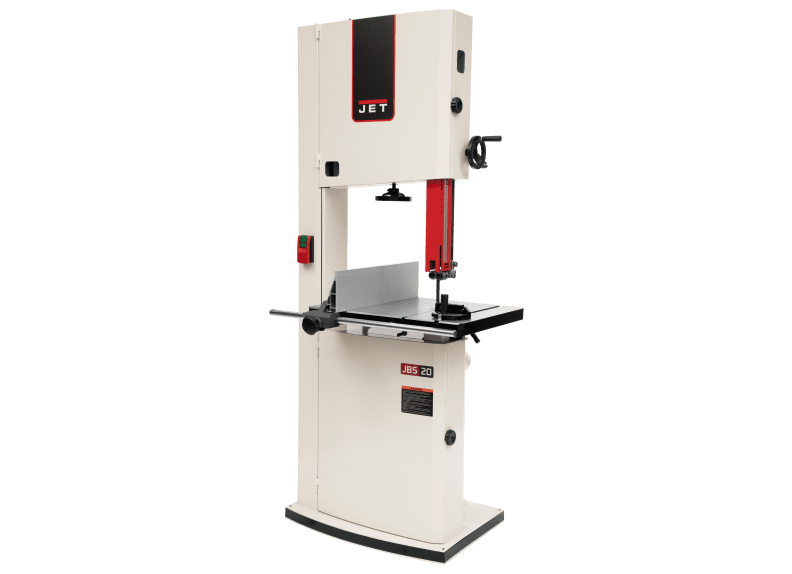

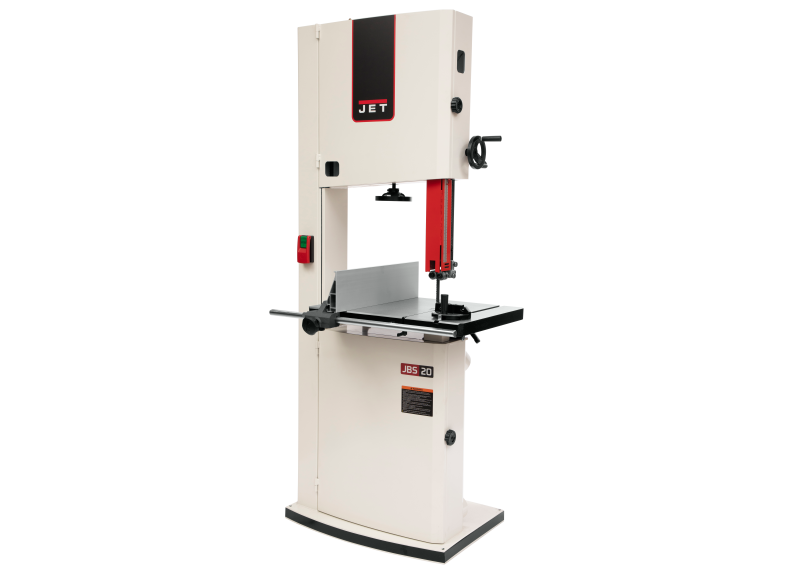

Designed to perform, the JET 20” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted for front blade removal and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.

Features

Blade tracking window provides clear view of blade during tracking

Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy

Cast iron trunnion for maximum support and stability

Conveniently located dual 4" dust collection ports catch dust and chips at the source

Easy-to-read blade tension scale can be viewed through upper door window

Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release

Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support

Round table insert features leveling screws for precise adjustment

Single knob adjustment simplifies the blade tracking process

Table tilts 5° left and 45° right to accommodate a wide variety of cuts

Specifications

More Information
Stock Number	JT9-714800
Band Saw Size/Wheel Diameter (In.)	20-1/4
Cutting Capacity Height (In.)	16
Cutting Capacity Width (In.)	20.0000
Dust Collection Minimum CFM Required (CFM)	400
Minimum Saw Blade Width (In.)	1/8
Model Number	JWBS-20-3
Motor Amps	12
Motor Power (HP)	3
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	30
Table Height from Floor (In.)	37
Table Size (L x W) (In.)	27-1/4 x 20 x 1-5/8

Reviews

JWBS-20-3, 20" Bandsaw, 3HP, 230V
