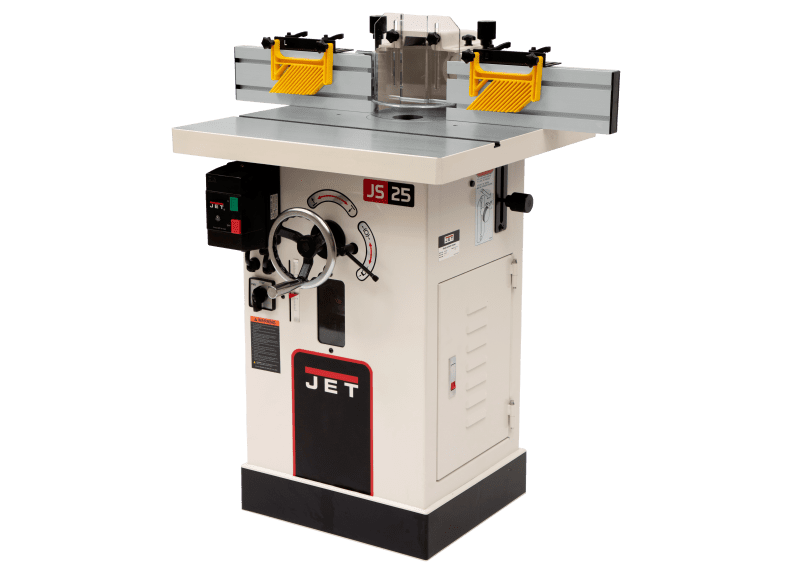

JWS-25X, JET Shaper, 3HP, 1PH
Stock Number:
JT9-708309
JET JWS-25X Woodworking Shaper, 3HP, 1PH (708309)
Manual
The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.
Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
Reversible spindle speeds for diverse shaping jobs
Spindle lock for safe and easy cutter set up
Starting Pins for irregular shaping
Two-speeds let you select the best speed and torque for different cutter diameters
V-belt transfers maximum power to the spindle
| Stock Number | JT9-708309 |
|---|---|
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Model Number | JWS-25X |
| Motor Amps | 16 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 30 |
| Spindle Travel (In.) | 3-1/2 |
| Table Height from Floor (In.) | 33 |
| Table Inserts (In.) | 2 |
| Table Opening Diameter (In.) | 6-9/32 |
| Table Size (L x W) (In.) | 25-1/2 x 25 |
