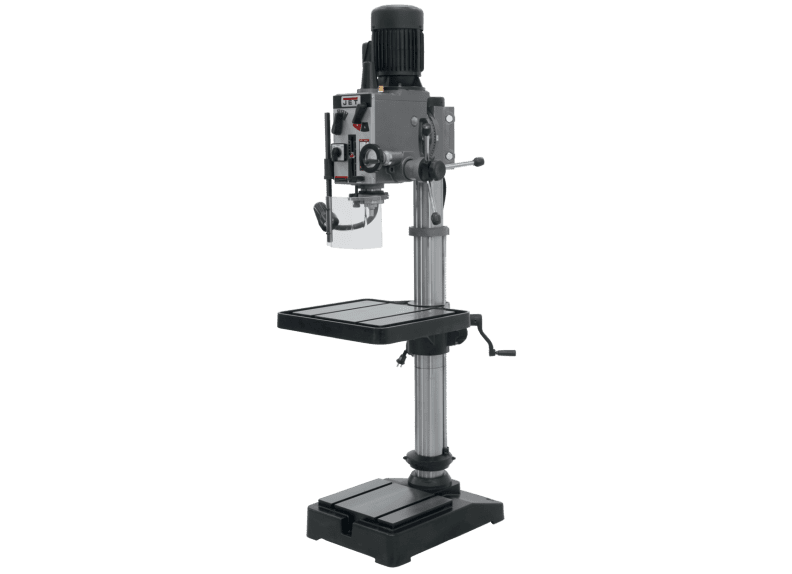

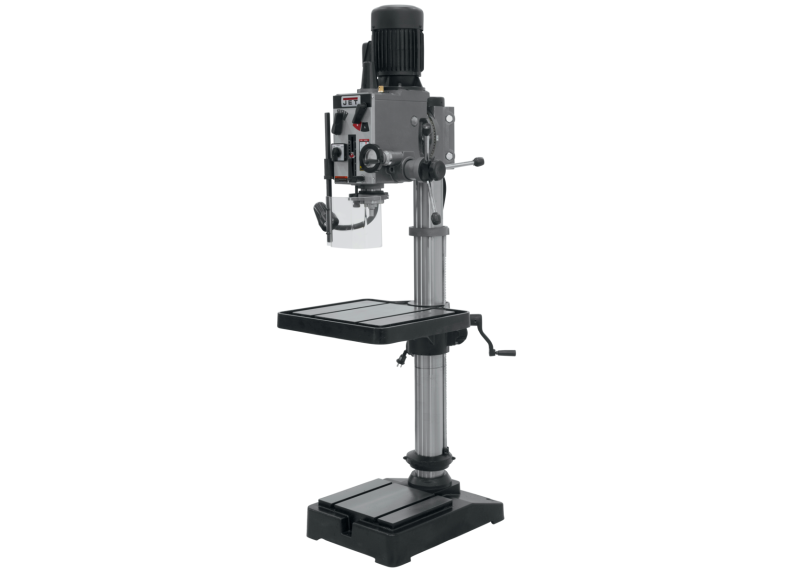

GHD-20, 20" Gear Head Drill Press 230V, 3Ph
Stock Number:
JT9-354020
GHD-20, 20" Gear Head Drill Press 230V, 3Ph
Manual
JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.
Easily accessible table raiser
Head tilts left or right
Large production table and T-slotted base
Three power downfeed rates
| Stock Number | JT9-354020 |
|---|---|
| Base Dimensions (In.) | 26 x 18 |
| Base Work Table (In.) | 15-1/4 x 13 |
| Column Diameter (In.) | 4-1/2 |
| Distance Column to Spindle (In.) | 10 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Drilling Capacity Mild Steel (In.) | 1-1/4 |
| Drills to Center of Circle (In.) | 20 |
| Model Number | GHD-20 |
| Motor (HP) | 2 HP (2 Speed) , 230V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 32 x 24 x 71 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3 |
| Quill Feed | Manual |
| Range of Spindle Speeds (RPM) | 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000 |
| Spindle Distance to Base (In.) | 44-15/16 |
| Spindle Distance to Table (Max.) (In.) | 30-1/2 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Geared Head |
| T-Slot Centers (In.) | 9 |
| Table Size (L x W) (In.) | 21-3/4 x 19-1/2 |
| Table Travel (In.) | 25-1/2 |
| Weight (Lbs.) | 660 |
| Work Table Weight Capacity (Lbs.) | 275 |
