JDP-20MF, 20" Floor Drill Press 115/230V 1Ph
Stock Number:
JT9-354170

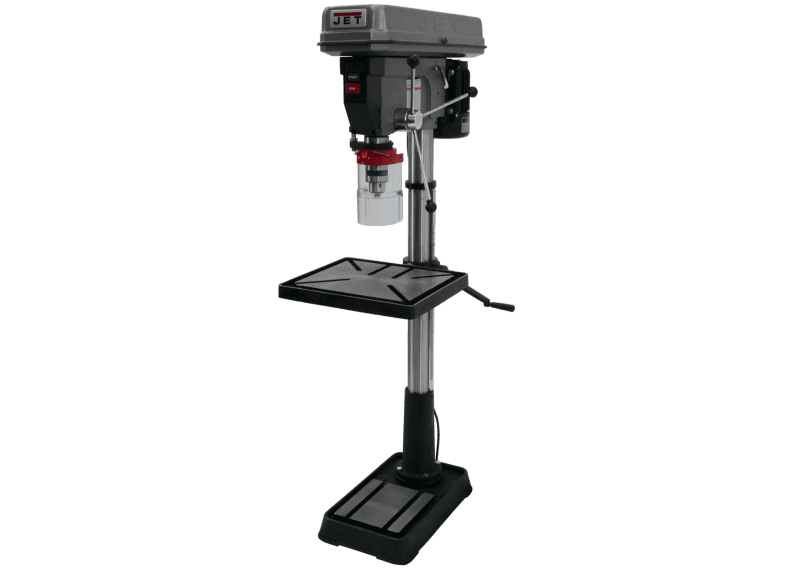

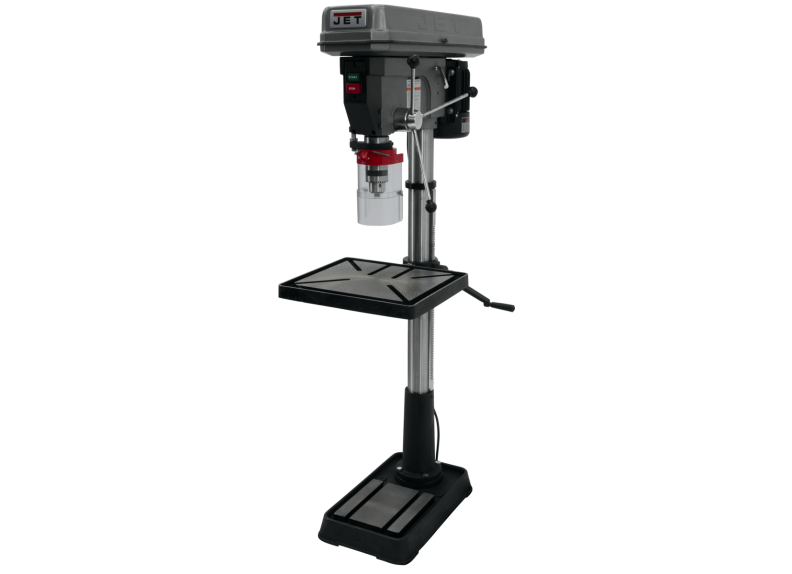

JET JDP-20MF 20" Drill Press, 115/230V 1Ph (354170)
Manual
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
1/2" Dia. external depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Drill chuck and key included
Hinged metal belt and pulley cover
On/off switch located on front of drill press head
Quick adjustment motor mount for rapid changing of spindle speeds
Telescoping safety spindle guard
| Stock Number | JT9-354170 |
|---|---|
| Base Dimensions (In.) | 13-3/4 x 22-3/4 |
| Base Work Table (In.) | 13 x 8-1/2 |
| Column Diameter (In.) | 3-3/8 |
| Distance Column to Spindle (In.) | 10 |
| Drilling Capacity Cast Iron (In.) | 1 |
| Drilling Capacity Mild Steel (In.) | 3/4 |
| Drills to Center of Circle (In.) | 20 |
| Model Number | JDP-20MF |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 33-1/2 x 18-1/2 x 67 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 150 - 4,200 |
| Spindle Distance to Base (In.) | 46-3/4 |
| Spindle Distance to Table (Max.) (In.) | 29-1/8 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 4-5/8 |
| Style (Type) | Variable |
| T-Slot Centers (In.) | 3-1/2 |
| T-Slots Number and Size (In.) | 6 and 1/2 |
| Table Size (L x W) (In.) | 18-1/2 x 16 |
| Table Travel (In.) | 21-1/2 |
| Weight (Lbs.) | 282 |
| Work Table Weight Capacity (Lbs.) | 80 |
