HBS-1018W, 10" x 18" Horizontal Bandsaw
Stock Number:
JT9-414473

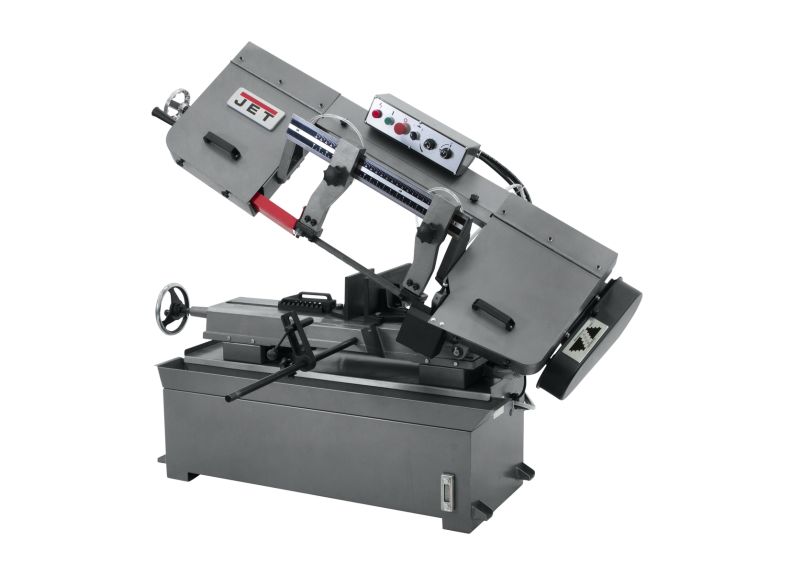

HBS-1018W, 10" x 18" Horizontal Bandsaw 230V 1Ph
Manual
Set on a heavy-duty machined tabled bed to eliminate vibration, the JET 10" x 18" Horizontal Bandsaw delivers a precision cut time after time. Multiple operational features make this a highly desired piece of machinery for any shop.
Adjustable Material Stop
Blade guides feature parallel double-row ball bearing support
Built-in, self-propelled blade brush extends blade life
Carbide blade guides feature parallel double-row ball bearing support
Coolant is distributed through the blade guides
Fully adjustable hydraulic downfeed with separate on/off control valve
Large hand wheel and built-in gauge provides easy blade tensioning
Proprietary oversized chip tray design minimizes over spray and reduces clean up
Quick-positioning vise with fully adjustable jaws
| Stock Number | JT9-414473 |
|---|---|
| Amperage | 13A |
| Bed Height (In.) | 23.5 |
| Blade Speed (SFPM) | 82, 132, 210, 330 |
| Blade Speeds (SFPM) | 82, 132, 210, 330 |
| Blade Wheel Diameter (In.) | 14 |
| Cutting Capacity (W x D) (In.) | 10 x 18 |
| Drive | Belt Drive |
| Gross Weight (Lbs) | 906 |
| Model Number | HBS-1018W |
| Motor (HP) | 2 HP, 230V Only, 1Ph |
| Net Weight (Lbs.) | 805 |
| Overall Dimensions (L x W x H) (In.) | 69 x 28 x 42-3/4 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 45 Degrees (In.) | 10 x 7-1/2 |
| Rectangle at 90 Degrees (In.) | 10 x 16 and 6-1/2 x 18 |
| Round at 45 Degrees (In.) | 7-1/2 |
| Round at 90 Degrees (In.) | 10 |
| Vise Swivels (Deg.) | 45° |
| Weight (Lbs.) | 906 |
