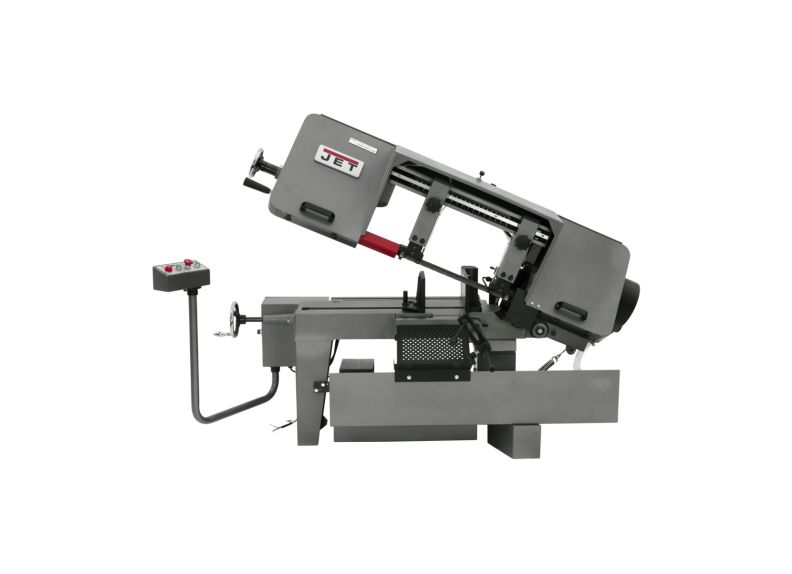

J-7020, 10" x 16" Horizontal Bandsaw
Stock Number:
JT9-414472
J-7020, 10" x 16" Horizontal Bandsaw 115/230V, 1 Ph
Manual
Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function and
Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
Adjustable Material Stop
Cast iron blade wheels
Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
Patented 3-Jaw vise with rapid action moveable jaw for faster set up
Swing away control panel houses major saw controls
Variable speed drive system
| Stock Number | JT9-414472 |
|---|---|
| Blade Speeds (SFPM) | 100 - 350 |
| Blade Wheel Diameter (In.) | 14 |
| Drive | Variable Speed |
| Model Number | J-7020 |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 75-1/2 x 33 x 41 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 11 |
| Rectangle at 90 Degrees (In.) | 10 x 10 and 7 x 16 |
| Round at 45 Degrees (In.) | 10 |
| Round at 90 Degrees (In.) | 10 |
| Vise Swivels (Deg.) | 45° |
| Weight (Lbs.) | 927 |
