J-8203K, 14" Metal/Wood Vertical Bandsaw
Stock Number:
JT9-414504C

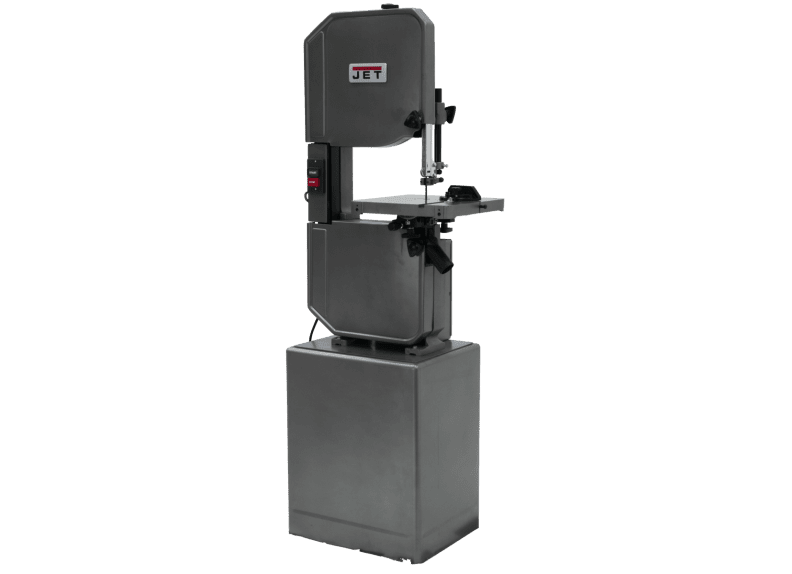

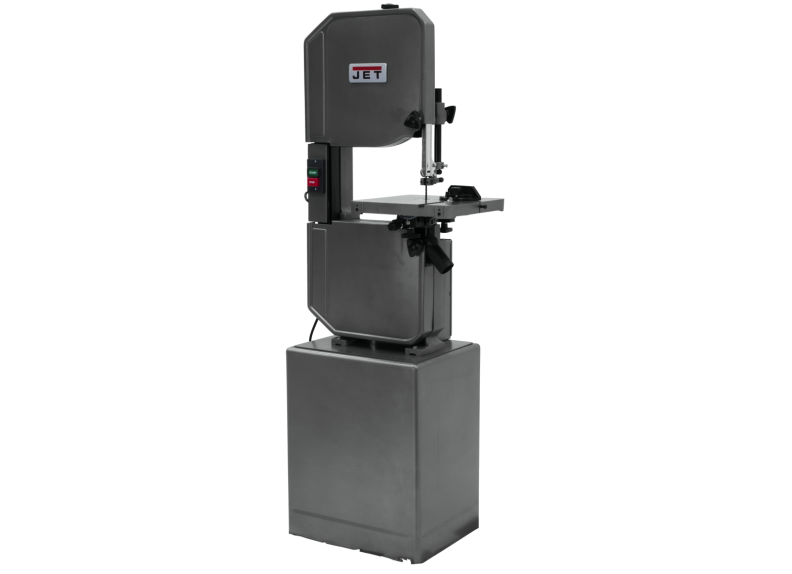

JET J-8203K, 14-Inch Metal/Wood Vertical Bandsaw, 1HP, 230/460V 3Ph (414504C)
Manual
The line of JET Metal/Wood Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. JET has engineered a gear box that permits cutting of a great variety of materials, then backed it with the industry leading two year warranty
14 TPI metal cutting blade included
6 TPI wood cutting blade included
Adjustable table
Conveniently located on/off switch
Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications
Variable speed drive system
Variable speed drive system (8201VS)
| Stock Number | JT9-414504C |
|---|---|
| Blade Speeds Wood (SFPM) | 3300.0000 |
| Blade Width (Min.-Max.) (In.) | 1/8 - 3/4 |
| Height Capacity (Max.) (In.) | 6 |
| Model Number | J-8203K |
| Motor (HP) | 1 HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 25-1/2 x 22-3/8 x 73-1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Shipping Dimensions (L x W x H) (In.) | 25.5 x 22.5 x 73 |
| Table Height (In.) | 44 |
| Table Size (L x W) (In.) | 14 x 14 |
| Table Tilt to Left (Deg.) | 15 |
| Table Tilt to Right (Deg.) | 45 |
| Throat Capacity (In.) | 12 |
| Weight (Lbs.) | 280 |
